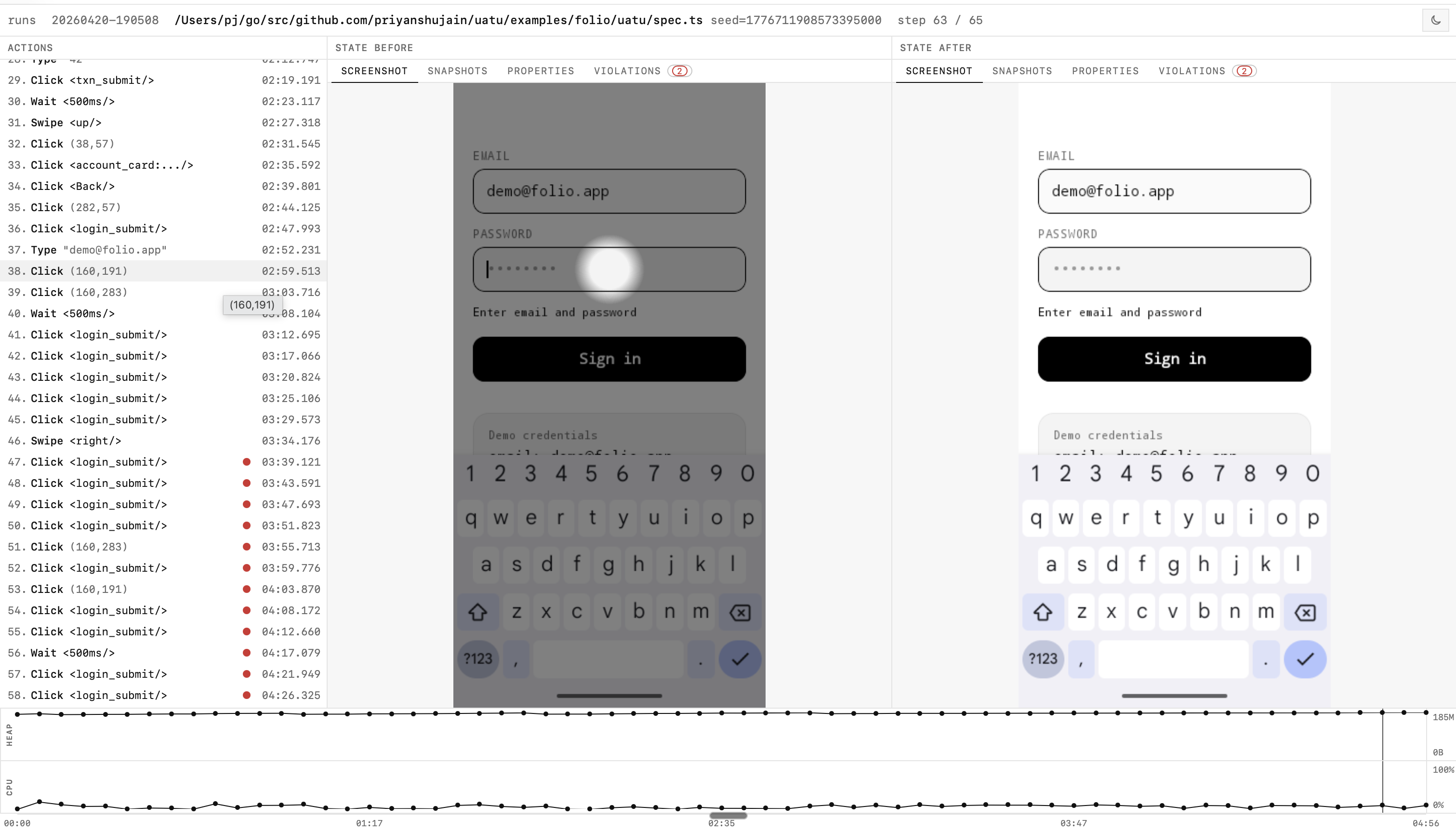

sanderling replay
Local web UI for exploring runs produced by
sanderling test. Reads
runs/<id>/meta.json and
runs/<id>/trace.jsonl from disk.
sanderling replay [run-or-runs-dir] [--port N] [--no-open] [--dev]The positional argument can be a runs directory or a single run
directory (auto-detected by meta.json). Defaults to
./runs.
Panels
| Panel | What it shows |
|---|---|
| Screenshot | Device screenshot for the focused step, with the dispatched action's target spotlit. |
| ActionList | Ordered list of steps with the verb and target for each action. |
| Timeline | Per-property lane chart over the run; cells coloured by violated, pending, or holds. |
| ViolationsPanel | Property statuses at the focused step with residual formulas for any that failed. |
| HierarchyPanel | Filterable table of every UI element captured at the focused step; mirrors the selectors documented in Spec language reference. |
| SnapshotTable | Flattened snapshots map for the focused step, with
diffs against the previous step. |
| MetricsChart | Heap and other host-side metrics sampled per step. |
| ExceptionsPanel | Uncaught exceptions captured during the run, with a jump-to-first control. |
Keyboard shortcuts
| Key | Action |
|---|---|
j, Right |
Next step |
k, Left |
Previous step |
Shift+j, Shift+Right |
Jump 10 forward |
Shift+k, Shift+Left |
Jump 10 back |
g / G |
First / last step |
. |
Next step with a violation |
Arrow keys inside a tablist or listbox yield to those widgets. Use
j/k when focus is on one.
Deep links
/runs/:id/steps/:n links to a specific step. Use it in
issues or PRs when pointing at a violation.
The run index auto-refreshes over SSE as new runs land, so
sanderling replay and sanderling test can run
side by side.
Development
Two-process loop while iterating on the UI:
make web-dev # bun + vite on http://127.0.0.1:5173
make replay-dev # sanderling replay --dev, proxies non-API to 5173Single binary with the bundle embedded:
make sanderling
